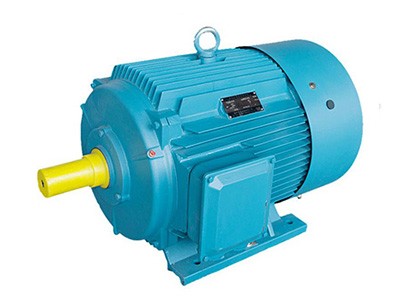

YD-H系列船用多速三相異步電動機

產品概述

YD-H系列三相異步電動機是自扇冷式，全封閉，多速，鼠籠式，船用三相異步電動機，該類電動機具有可隨負載性質的要求而有級地變化轉速，從而達到功率的合理匹配和簡化多速系統的特點。該電機適用于船舶上驅動需要變速的各種機械。該產品具有效率高，節能，起動轉矩大、性能好、噪聲低，振動小等特點。

工作環境條件

海拔≤1000m
環境溫度： 0~+45℃
空氣相對濕度 ≤95%
傾斜: ±30°
搖擺: ±22.5°
有鹽霧、油霧、霉菌及海水的影響
有船舶和近海裝置正常營運和作業中產生的沖擊、振動的影響
防護等級：IP56; 絕緣等級：F
電壓/頻率：380V/50Hz

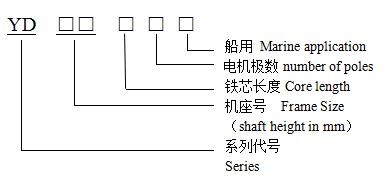

型號說明

技術數據

型號	功率 kW	額定電流 A	額定轉速 r/min	接法	型號	功率 kW	額定電流 A	額定轉速 r/min	接法
YD80M1-2/4-H	0.55/0.45	1.5/1.4	2860/1420	YY/△	YD160L-6/12-H	7/3.7	15.8/16.1	970/480	YY/△
YD80M2-2/4-H	0.75/0.55	2.0/1.7	2860/1420		YD160L-2/4/6-H	9/7/4.5	18.8/15.1/11.4	2940/1470/970	YY/△/Y
YD90S-2/4-H	1.1/0.85	2.8/2.3	2845/1415		YD160L-2/4/8-H	9/7/2.8	18.8/15.1/9.2	2940/1470/730
YD90L-2/4-H	1.8/1.3	4.4/3.3	2850/1410		YD160L-4/6/8-H	7.5/6/4.5	15.6/14.5/13.8	1460/980/730
YD90S-4/6-H	0.85/0.65	2.3/2.3	1410/920		YD180M-2/4-H	18.5/15	36.7/29.4	2910/1470	YY/△
YD90L-4/6-H	1.1/0.85	3.0/2.8	1415/925		YD180M-4/6-H	14/11	29.8/25.9	1470/980
YD90L-4/8-H	0.75/0.45	1.9/1.9	1390/670		YD180M-6/8-H	10/7.5	24.5/21.9	980/730
YD90S-6/8-H	0.45/0.35	1.4/1.6	930/675		YD180L-2/4-H	22/18.5	42.9/35.9	2910/1470
YD90L-6/8-H	0.65/0.45	1.8/1.9	920/680		YD180L-4/6-H	16/13	33.7/29.8	1470/980
YD100L1-2/4-H	2.4/2.0	5.6/4.8	2850/1430		YD180L-4/8-H	17/11	32.3/26.7	1470/730
YD100L2-2/4-H	3.0/2.4	6.7/5.6	2850/1430		YD180L-6/8-H	12/9	28.3/24.8	980/730
YD100L1-4/6-H	1.8/1.3	4.4/3.8	1440/940		YD180L-6/12-H	10/5.5	20.5/19.6	980/490
YD100L2-4/6-H	2.2/1.5	5.4/4.3	1430/940		YD200L-2/4-H	30/26	58.3/49.9	2950/1470
YD100L-4/8-H	1.5/0.85	3.5/3.1	1410/710		YD200L-4/6-H	22/18.5	44.9/41.4	1460/980
YD100L-6/8-H	1.1/0.75	3.1/2.9	950/710		YD200L1-4/8-H	22/14	41.3/33	1470/740
YD100L-2/4/6-H	1.8/1.3/0.75	4.5/3.7/2.6	2900/1450/950	YY/△/Y	YD200L2-4/8-H	26/17	48.8/40.1	1470/740
YD112M-2/4-H	4.0/3.0	8.6/7.4	2960/1460	YY/△	YD200L1-6/8-H	17/12	39.1/32.6	980/730
YD112M-4/6-H	2.8/2.2	6.7/5.7	1450/945		YD200L2-6/8-H	20/15	45.4/40.3	980/730
YD112M-4/8-H	2.4/1.5	5.3/5.0	1445/690		YD200L1-6/12-H	13/7.5	26.4/24.5	970/490
YD112M-6/8-H	1.8/1.3	4.8/4.5	950/695		YD200L2-6/12-H	15/9	30.1/28.9	970/490
YD112M-2/4/6-H	2.4/2.0/1.1	5.8/5.1/3.5	2975/1465/960	YY/△/Y	YD200L-4/6/8-H	17/13/10	33.4/28.7/24.8	1470/980/740	YY/△/Y
YD112M-2/4/8-H	2.4/2.0/0.65	5.8/5.1/2.7	2975/1465/685		YD225S-2/4-H	37/32	71.1/60.7	2960/1470	YY/△
YD112M-4/6/8-H	1.5/1.0/0.85	3.5/3.1/3.7	1460/950/700		YD225S-4/6-H	28/22	56.5/44.2	1470/980
YD132S-2/4-H	5.5/4.5	11.9/9.8	2955/1470	YY/△	YD225M-2/4-H	45/37	86.4/69.4	2960/1470
YD132S-4/6-H	4/3	9.5/7.7	1470/960		YD225M-4/6-H	32/26	63.2/52.2	1470/980
YD132S-4/8-H	3.3/2.2	7.1/7.0	1460/710		YD225M-4/8-H	34/24	66.7/53.2	1470/740
YD132S-6/8-H	2.4/1.8	6.2/5.8	970/710		YD225M-6/12-H	20/12	39.7/35.2	980/480
YD132S-2/4/6-H	3/2.6/1.8	7.4/6.1/5.1	2970/1470/970	YY/△/Y	YD225S-4/6/8-H	24/18.5/14	48/40/35	1480/990/740	YY/△/Y
YD132S-2/4/8-H	3/2.6/1	7.0/5.9/3.5	2970/1470/710		YD225M-4/6/8-H	28/22/17	54.3/45.2/42.4	1480/990/740	YY/△/Y
YD132S-4/6/8-H	1.8/1.5/1.1	4.0/4.2/4.1	1470/970/720		YD250M-2/4-H	52/45	98.7/84.4	2960/1480	YY/△
YD132M-2/4-H	8/6.5	17.1/13.8	2960/1470	YY/△	YD250M-4/6-H	42/32	81.1/62.1	1480/980
YD132M-4/6-H	5.5/4	12.3/9.8	1470/960		YD250M-4/8-H	42/30	78.8/65.8	1460/740
YD132M-4/8-H	4.5/3	9.4/9.0	1460/710		YD250M-6/12-H	24/15	47.5/42.1	980/490
YD132M-6/8-H	3.7/2.6	6.2/5.8	970/710		YD250M-4/6/8-H	34/26/24	64.5/52.8/55.3	1480/985/740	YY/△/Y
YD132M1-2/4/6-H	4/3.3/2.2	8.8/7.5/6.0	2970/1470/970	YY/△/Y	YD280S-2/4-H	72/60	136.7/111.3	2950/1470	YY/△
YD132M2-2/4/6-H	5/4/2.6	10.8/9.0/6.9	2970/1470/710		YD280S-4/6-H	55/42	106.7/81.5	1470/980
YD132M-2/4/8-H	4.5/3.7/1.3	10/8.4/4.6	2970/1470/710		YD280S-4/8-H	55/40	102/83.5	1470/730
YD132M1-4/6/8-H	2.2/2/1.5	4.9/5.4/5.2	1470/970/720		YD280S-6/12-H	30/20	59/55	970/490
YD132M2-4/6/8-H	3/2.6/1.8	6.5/6.8/6.1	1470/970/720		YD280S-4/6/8-H	42/34/30	78/67.5/68.5	1480/980/740	YY/△/Y
YD160M-2/4-H	11/9	22.9/18.5	2920/1460	YY/△	YD280M-2/4-H	82/72	154/134	2950/1470	YY/△
YD160M-4/6-H	8/6.5	17.4/15.1	1460/960		YD280M-4/6-H	67/55	131.5/107	1470/980
YD160M-4/8-H	7.5/5	15.2/13.9	1450/730		YD280M-4/8-H	67/47	123/97	1470/730
YD160M-6/8-H	6/4.5	14.7/13.3	970/730		YD280M-6/12-H	37/24	73/64	970/490
YD160M-6/12-H	5.0/2.6	11.9/11.6	970/480		YD280M-4/6/8-H	50/37/34	93/73.5/77.5	1480/980/740	YY/△/Y
YD160M-2/4/6-H	6/5/3.7	13.2/11.2/9.5	2940/1470/970	YY/△/Y	YD315M-2/4-H	110/82	202/152.5	2950/1470	YY/△
YD160M-2/4/8-H	6/5/2.2	13.2/11.2/7.6	2940/1470/730		YD315M-4/6-H	90/72	175/138.1	1470/980
YD160M-4/6/8-H	5.5/4/3.3	11.6/9.9/10.2	1460/980/730		YD315M-4/8-H	82/55	150.5/113.5	1470/730
YD160L-2/4-H	14/11	28.8/22.3	2920/1460	YY/△	YD315L-2/4-H	132/90	242.5/167	2950/1470
YD160L-4/6-H	11/9	23.7/20.6	1460/960		YD315L-4/6-H	110/82	209/157.3	1470/980
YD160L-4/8-H	11/7	21.8/19	1450/730		YD315L-4/8-H	90/72	167/144	1470/730
YD160L-6/8-H	8/6	19.4/17.5	970/730						?

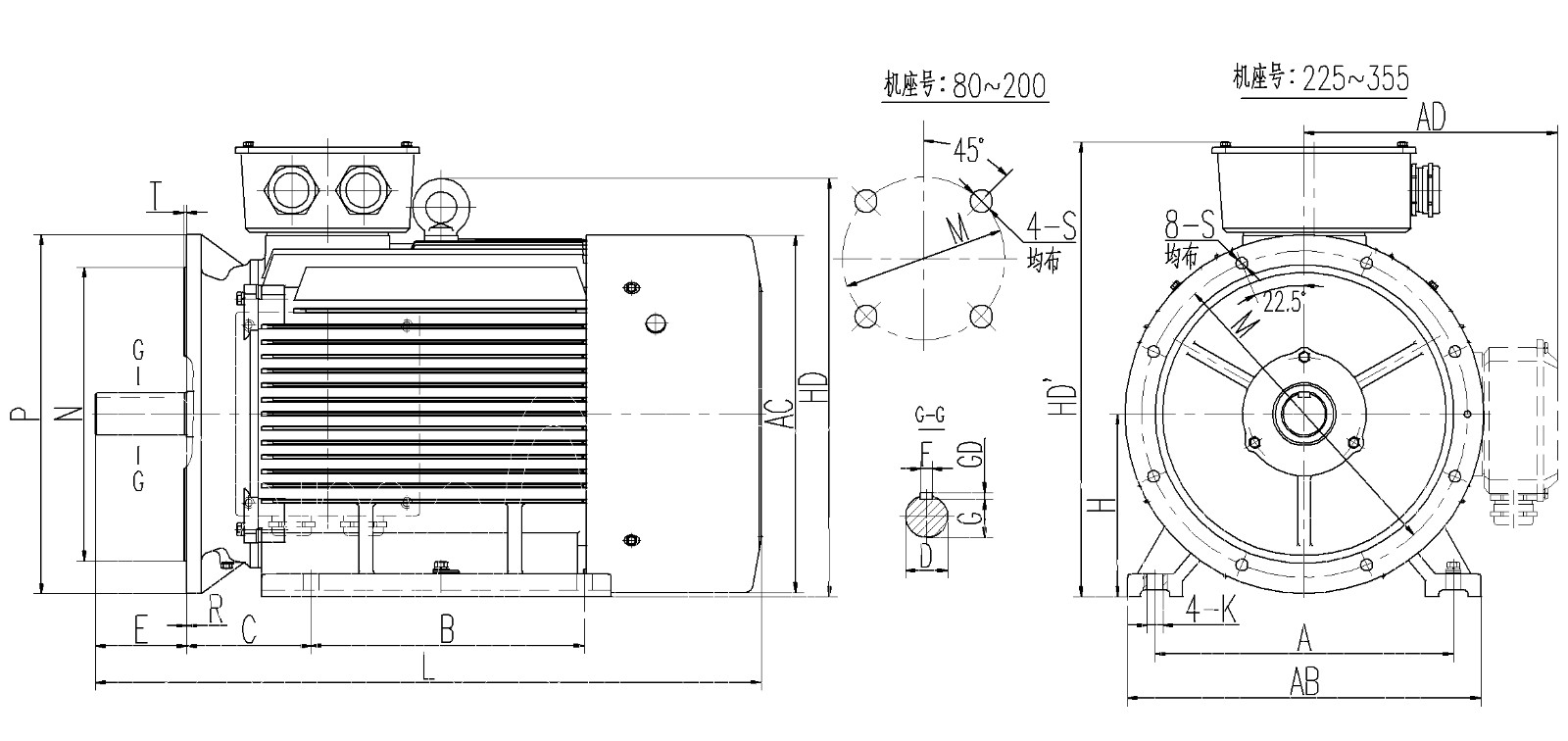

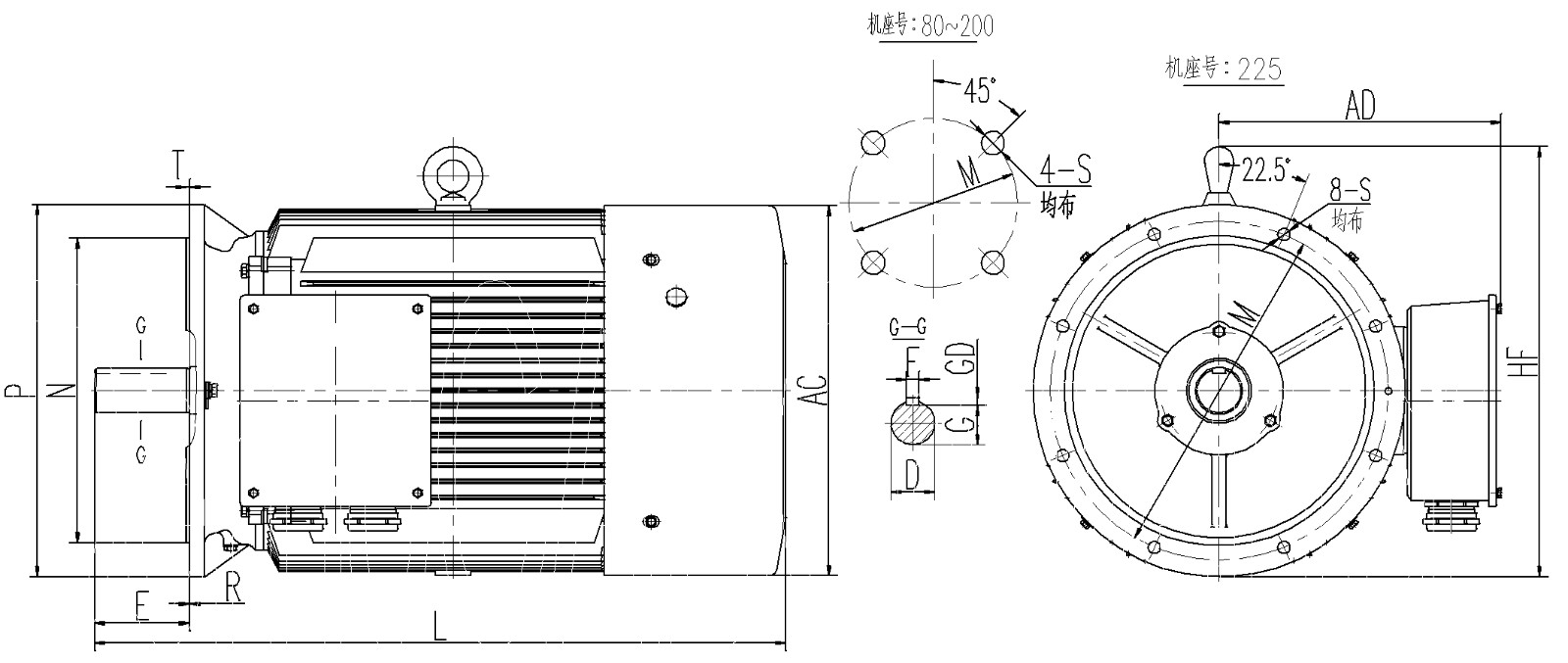

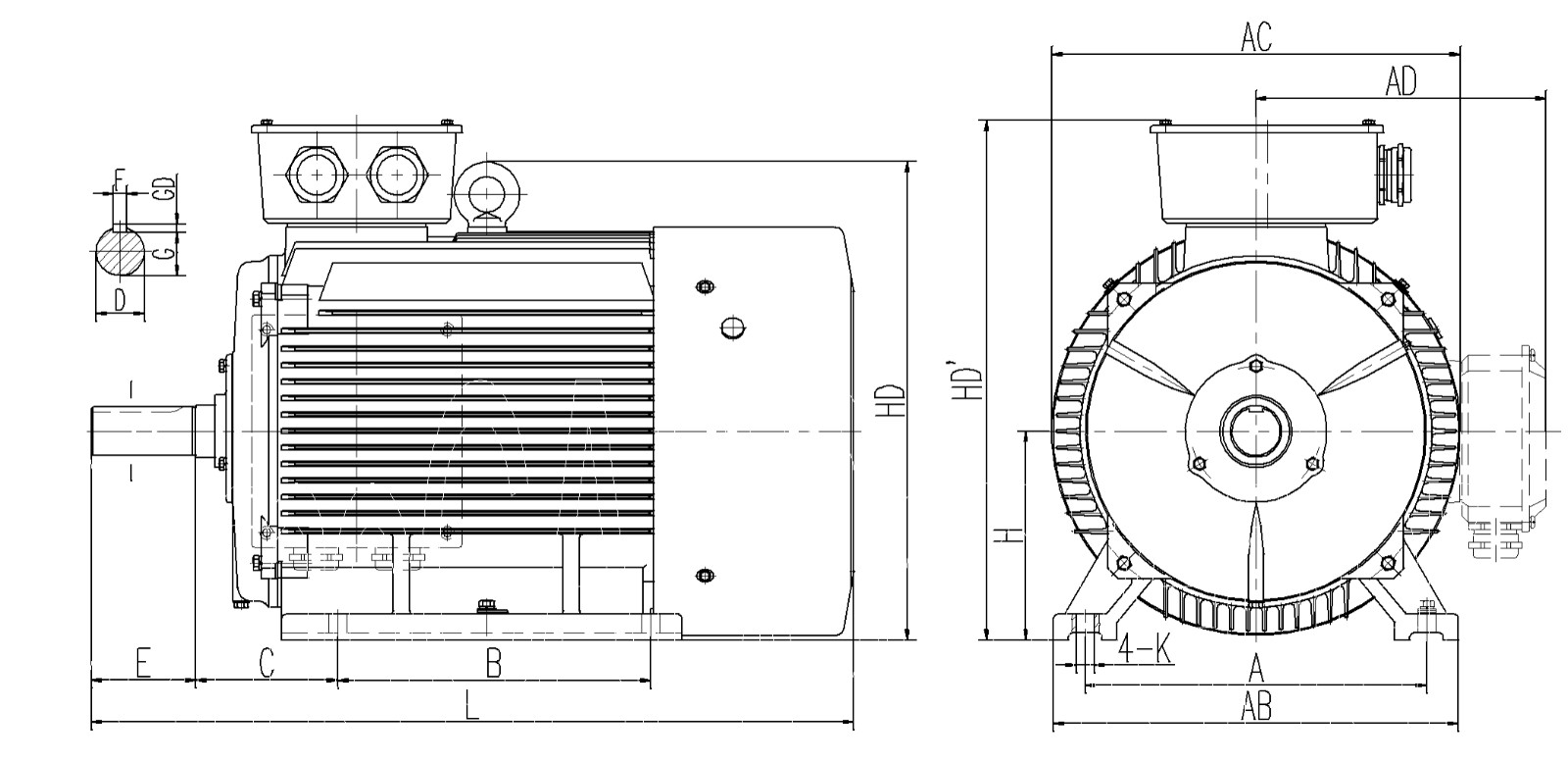

外形及安裝尺寸

機座號	安裝及外形尺寸
	A	B	C	D	E	F	G	GD	H	K	AB	AC	AD	HD	HD＇	L
80M	125	100	50	19	40	6	15.5	6	80	10	165	175	160	205	240	295
90S	140		56	24	50	8	20	7	90		180	195	175	225	270	320
90L		125														360
100L	160	140	63	28	60		24		100	12	205	215	185	250	290	385
112M	190		70						112		245	240	195	270	320	405
132S	216		89	38	80	10	33	8	132		280	275	245	320	365	500
132M		178														540
160M	254	210	108	42	110	12	37		160	15	330	330	270	385	440	605
160L		254														650
180M	279	241	121	48		14	42.5	9	180		355	380	290	425	475	670
180L		279														710
200L	318	305	133	55		16	49	10	200	19	395	420	355	475	525	780
225S	356	286	149	60	140	18	53	11	225		435	470	370	530	580	830
225M		311														850
250M	406	349	168	65	140	18	58	11	250	24	490	510	455	570	650	935
280S	457	368	190	75		20	67.5	12	280		550	580	470	640	705	1020
280M		419														1070
315S	508	406	216	80	170	22	71	14	315	28	744	645	576	865	875	1270
315M		457														1340
315L		508

機座號	安裝及外形尺寸
	A	B	C	D	E	F	G	GD	H	K	M	N	P	R	S	T	AB	AC	AD	HD	HD＇	L

80M	125	100	50	19	40	6	15.5	6	80	10	165	130	200	0±1.5	12	3.5	165	175	160	205	240	295
90S	140		56	24	50	8	20	7	90								180	195	175	225	270	320
90L		125																				360
100L	160	140	63	28	60		24		100	12	215	180	250	0±2.0	15	4	205	215	185	250	290	385
112M	190		70						112								245	240	195	270	320	405
132S	216		89	38	80	10	33	8	132		265	230	300				280	275	245	320	365	500
132M		178																				540
160M	254	210	108	42	110	12	37		160	15	300	250	350	0±3.0	19	5	330	330	270	385	440	605
160L		254																				650
180M	279	241	121	48		14	42.5	9	180								355	380	290	425	475	670
180L		279																				710
200L	318	305	133	55		16	49	10	200	19	350	300	400				395	420	355	475	525	780
225S	356	286	149	60	140	18	53	11	225		400	350	450	0±4.0			435	470	370	530	580	830
225M		311																				850
250M	406	349	168	65	140	18	58	11	250	24	500	450	550				490	510	455	570	650	935
280S	457	368	190	75		20	67.5	12	280								550	580	470	640	705	1020
280M		419																				1070
315S	508	406	216	80	170	22	71	14	315	28	600	550	660		24	6	744	645	576	865	875	1270
315M		457																				1340
315L		508																				1340

機座號	安裝及外形尺寸
	D	E	F	G	GD	M	N	P	S	R	T	AC	AD	HF	L

80M	19	40	6	15.5	6	165	130	200	12	0±1.5	3.5	175	160	260	335
90S	24	50	8	20	7							195	175	270	365
90L															400
100L	28	60		24		215	180	250	15	0±2.0	4	215	185	300	430
112M												240	195	320	450
132S	38	80	10	33	8	265	230	300				275	245	380	535
132M															575
160M	42	110	12	37		300	250	350	19	0±3.0	5	330	270	450	660
160L															705
180M	48		14	42.5	9							380	290	490	730
180L															765
200L	55		16	49	10	350	300	400				420	355	550	840
225S	60	140	18	53	11	400	350	450		0±4.0		470	370	610	890
225M															915
250M	65	140	18	58	11	500	450	550				510	455	645	995
280S	75		20	67.5	12							580	470	720	1090
280M															1140
315S	80	170	22	71	14	600	550	660	24		6	645	576	900	1390
315M															1490
315L															1490

機座號	安裝及外形尺寸
	D	E	F	G	GD	M	N	P	R	S	T	AC	AD	HF	L

80M	19	40	6	15.5	6	165	130	200	0±1.5	12	3.5	175	160	230	295
90S	24	50	8	20	7							195	175	235	320
90L															360
100L	28	60		24		215	180	250	0±2.0	15	4	215	185	275	385
112M												240	195	285	405
132S	38	80	10	33	8	265	230	300				275	245	340	500
132M															540
160M	42	110	12	37		300	250	350	0±3.0	19	5	330	270	400	605
160L															650
180M	48		14	42.5	9							380	290	435	670
180L															710
200L	55		16	49	10	350	300	400				420	355	480	780
225S	60	140	18	53	11	400	350	450	0±4.0			470	370	530	830
225M															850

注：本產品樣本中，所有產品數據參數僅供參考，如有疑問請與工廠聯系，并以定貨時提供給用戶的確認資料為準。
