型號 | 功率kW | 電流A | 轉速r/min | 型號 | 功率kW | 電流?A | 轉速 r/min |
YT2-80M1-2 | 0.75 | 1.8 | 2820 | YT2-100L2-4 | 3 | 6.8 | 1420 |
YT2-80M2-2 | 1.1 | 2.6 | 2820 | YT2-112M-4 | 4 | 8.9 | 1440 |
YT2-90S-2 | 1.5 | 3.5 | 2840 | YT2-132S-4 | 5.5 | 11.7 | 1440 |
YT2-90L-2 | 2.2 | 4.9 | 2840 | YT2-132M-4 | 7.5 | 15.4 | 1440 |
YT2-100L-2 | 3 | 6.2 | 2880 | YT2-80M1-6 | 0.37 | 1.31 | 890 |
YT2-112M-2 | 4 | 8.2 | 2890 | YT2-80M2-6 | 0.55 | 1.7 | 890 |
YT2-132S1-2 | 5.5 | 11 | 2900 | YT2-90S-6 | 0.75 | 2.2 | 910 |
YT2-132S2-2 | 7.5 | 14.6 | 2900 | YT2-90L-6 | 1.1 | 3.2 | 910 |
YT2-801-4 | 0.55 | 1.5 | 1390 | YT2-100L-6 | 1.5 | 4 | 940 |
YT2-802-4 | 0.75 | 2.1 | 1390 | YT2-112M-6 | 2.2 | 5.8 | 940 |
YT2-90S-4 | 1.1 | 2.7 | 1400 | YT2-132S-6 | 3 | 7.2 | 960 |
YT2-90L-4 | 1.5 | 3.6 | 1400 | YT2-132M1-6 | 4 | 9.5 | 960 |
YT2-100L1-4 | 2.2 | 5 | 1420 | YT2-132M2-6 | 5.5 | 12.5 | 960 |

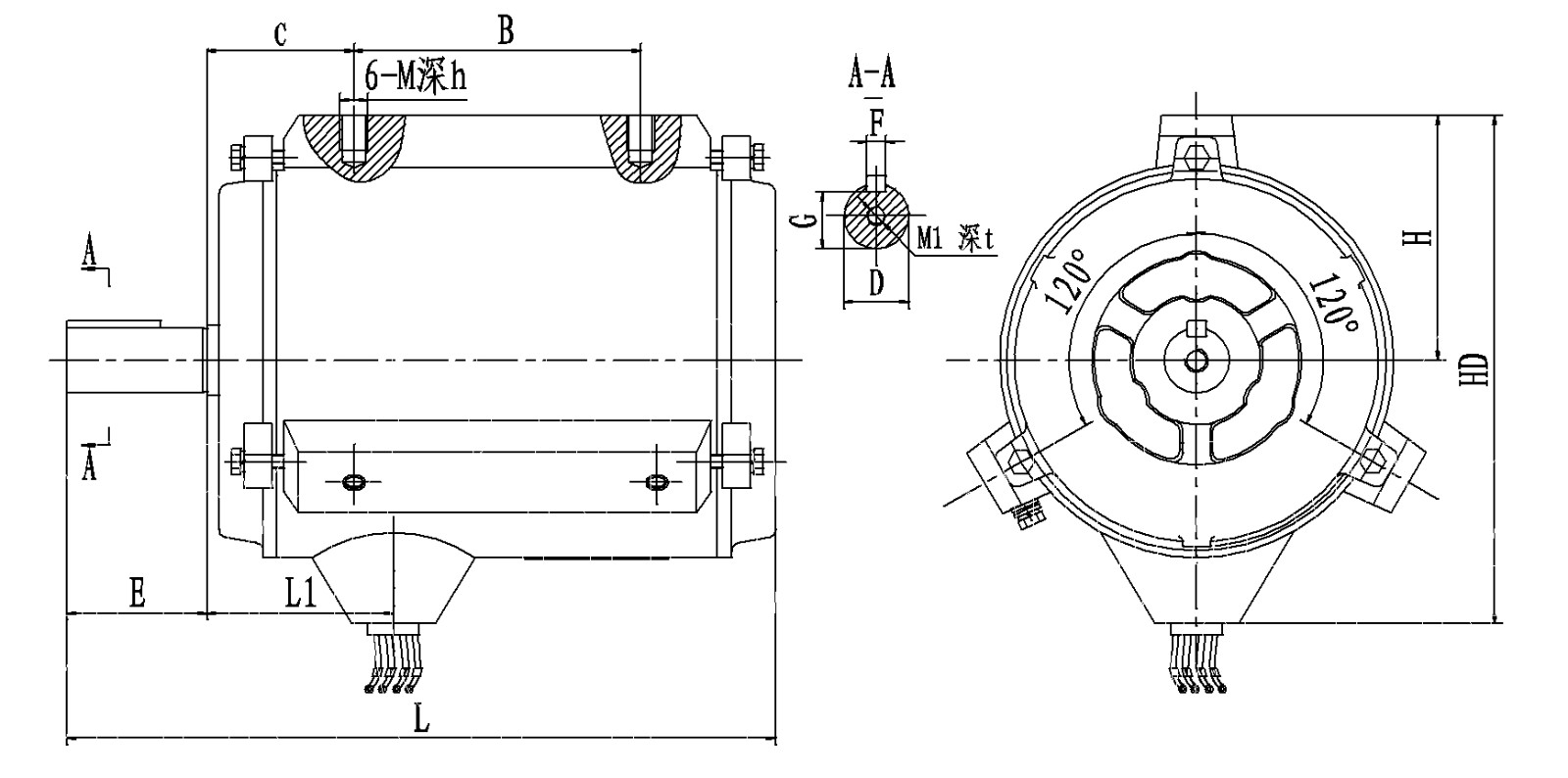

機座號 | 外形安裝尺寸 | |||||||||||
B | C | D | E | F | G | H | L1 | M深 h | M1深t | L | HD | |
80 | 83 | 61 | 19 | 40 | 6 | 15.5 | 86 | 48 | M8深15 | M6深15 | 250 | 200 |
90S | 86 | 60 | 24 | 50 | 8 | 20 | 100 | 55 | M12深18 | M8深15 | 270 | 230 |
90L | 115 | 295 | ||||||||||
100L | 130 | 73 | 28 | 60 | 24 | 105 | 80 | M12深15 | M10深15 | 330 | 250 | |
112M | 80 | 115 | 85 | M10深20 | 340 | 275 | ||||||
132S | 100 | 38 | 80 | 10 | 33 | 135 | 105 | M14深18 | M12深20 | 400 | 315 | |
132M | 168 | 440 |
